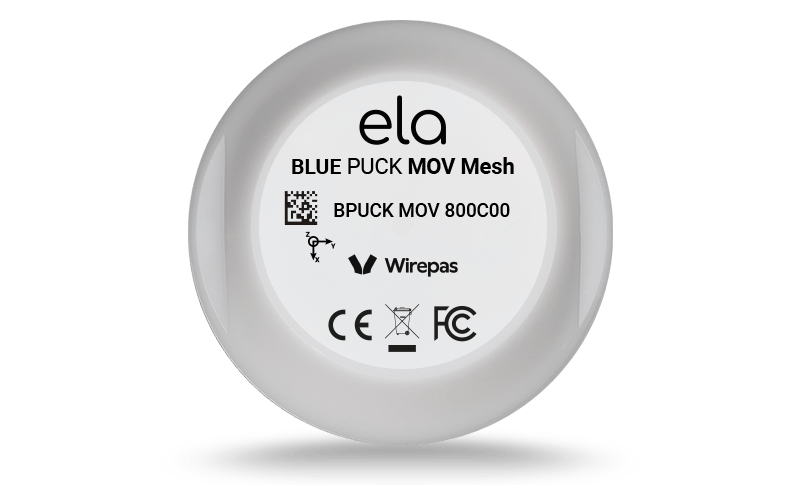

BLUE PUCK MOV MESH

Wirepas Mesh motion sensor

Equipped with Wirepas MESH technology, the BLUE PUCK MOV MESH motion sensor is waterproof and robust. 100% autonomous and robust, this sensor is adapted to industrial environments to meet the problems of anti-theft equipment by detecting vibrations. Its 3-axis accelerometer can also measure the angular position of this sensor. The Blue PUCK MOV MESH serves both as a wireless sensor and as a Mesh network node.

Test this product

Benefits

Technical Specifications
Technical Documentation
Accessories
Customization

Technical Specifications

Available references

For more details, please refer to the product data sheet
IDF25444-01A
IDF25444-02A
IDF25444-03A
IDF25444-04A

Battery

3 VDC – Internal lithium battery
Battery life : up to 4 yrs.

Radio & protocols

2.4 GHz – Bluetooth Low Energy 4.0/4.2
Transmission power: up to +4 dBm (configurable)
Configurable by NFC
Over-the-air update (OTAP)
Compatibility: Wirepas

Sensors

MESH motion sensor and angular measurement
Configurable detection threshold
Measurement range: – 8g to 8g

Cases & dimensions

Casing: Robust DELRIN (POM C) – Food quality
Ø 57mm base – H : 20mm
Weight: 41g
Operating temp:-40°C to +85°C
Protection class : IP68 – IP69K

Certifications

CE
UKCA
FCC
ISED
TELEC
RoHs

Technical Documentation

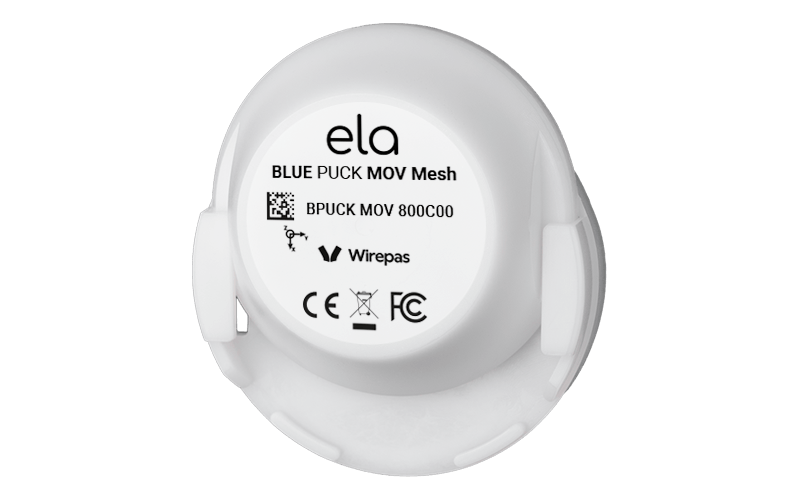

Accessories

Customization

Firmware customization

Customize your beacon and sensor firmware (BLE only).

>> Find out more about Bluetooth Advanced Features

Label customization

Customize the label of your beacon and sensor park.
Create your own white marking label.

Use cases

Motion Detection

Motion and vibration detection meets industrial needs for preventive and predictive maintenance, allowing better asset & cost management. By equipping a mobile asset or construction site tools with a motion sensor, it is possible to know its rate of use and to send an alert when a threshold is reached. This sensor can also be used to secure equipment against theft. The little bonus: the motion sensor also integrates angle measurement to send an alert when a predefined angle is exceeded.

Anti-theft equipment

Say STOP to the theft of your logistics equipment! ELA Innovation ensures the security of logistics platforms thanks to its innovative solution of anti-theft equipment based on Active DOT RFID technology. This solution works with a 100% autonomous PUCK DOT active RFID badge fixed inside the forklift, the device, the pallet or the package, allowing to detect and intercept any unauthorized exit in real time. The antennas installed on the ground trigger a light and/or sound signal at the control station in case of unauthorized exit, thus preventing the opening of the barrier, even if the tag is located in a truck trailer.
