RFID

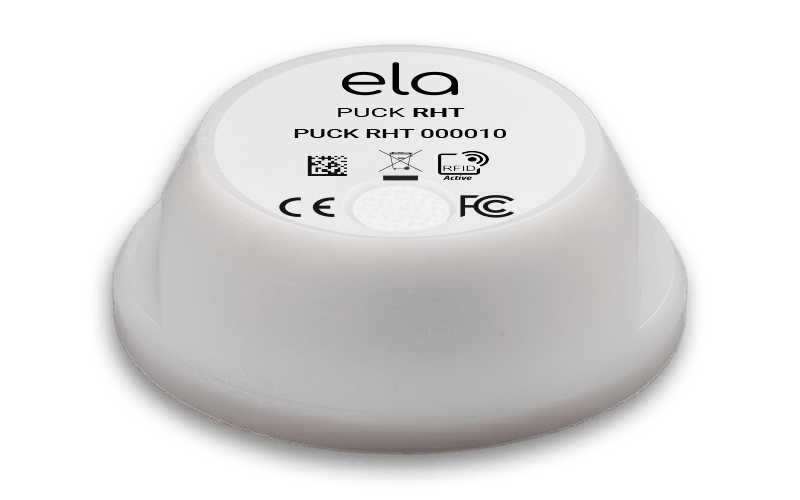

PUCK RHT

Active RFID Humidty & temperature sensor
The PUCK RHT is an Active RFID sensor developed for the periodic measurement of Temperature and Humidity. It is ideal for cold chain traceability in transport and storage or for smart building applications.

Benefits

icon

Multi-sensors

icon

Autonomy

icon

Long Range

Schéma boitier PUCK PROXIR capteur ELA Innovation
3 VDC – Internal lithium battery
Battery life : up to 10 yrs.
Active RFID- 433.92 MHz
Transmission period: 220ms to 12h
Temperature and humidity sensor
Temp measurement range:-40°C to +85°C
Accuracy: ±0.4°C max de 0°C à 60°C, ±1.2°C for the remaining range
Resolution: 0.0625°C
RH measurement range: 0% to 100%
Accuracy: +/- 2% RH max from 20% to 80%, +/- 5% RH max from 0 to 100%
Resolution: 0.05%
Casing: Robust DELRIN case (POM C) – Food quality
Ø 57mm base – H : 20mm
Weight: 41g
Operating temp:-40°C to +85°C
Protection class : IP65
CE
UKCA
FCC
RoHs

Customize your beacon and sensor firmware (BLE only).

>> Find out more about Bluetooth Advanced Features

Customize the label of your beacon and sensor park.
Create your own white marking label.
